Product

PLEATED FILTER

Products PLEATED FILTER

  • Description

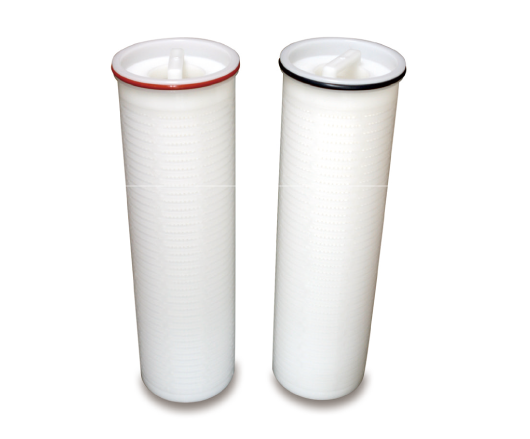

    HT Pleated Filter Cartridge Series is designed with a large outer diameter (152mm) suitable for high-efficiency and high-flow required for large-capacity processes, and is composed of polypropylene media with excellent chemical resistance and polypropylene parts. Other media, such as hydrophobic PTFE, hydrophilic PTFE, and hydrophilic PES, are also applicable. As it is of the stable absolute type, the product is reliable through constant filtration, and it is designed for high flow (200L/min) and long life by increasing the filtration area of the product.

Features

Smaller, more economical filter systems

Configuration of all Pure Polypropylene made

Very high flow rate (500gpm/60inch)

by heat-adhesion

All materials and components are acceptable to FDA List, 21 CFR for potable and edible liquid.

Low cost by large filtration area

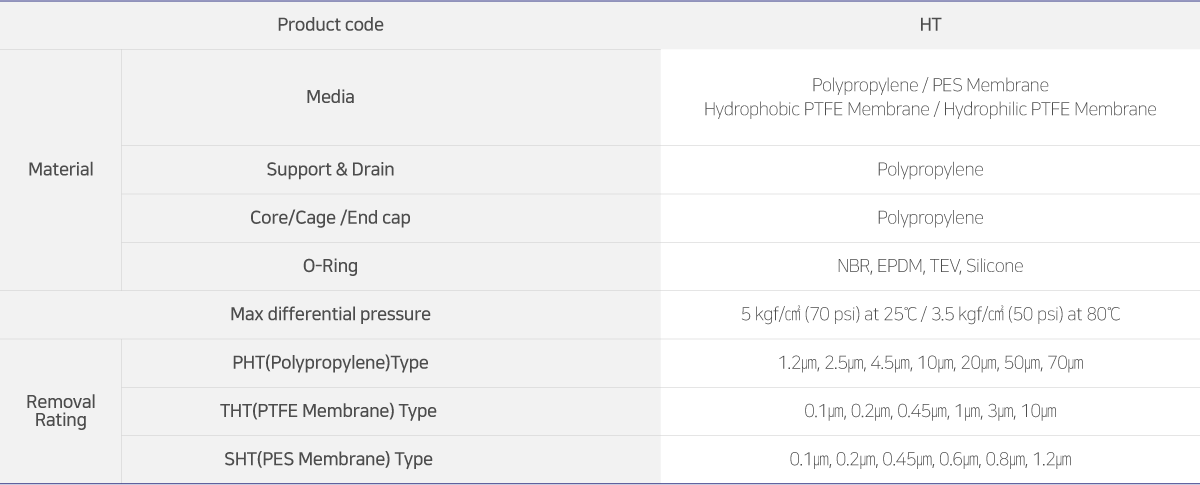

Specifications

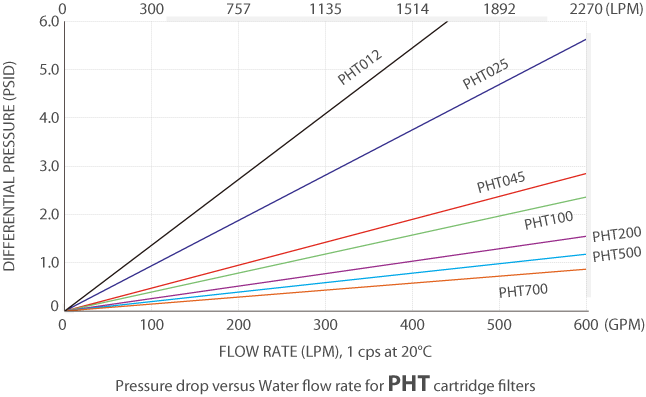

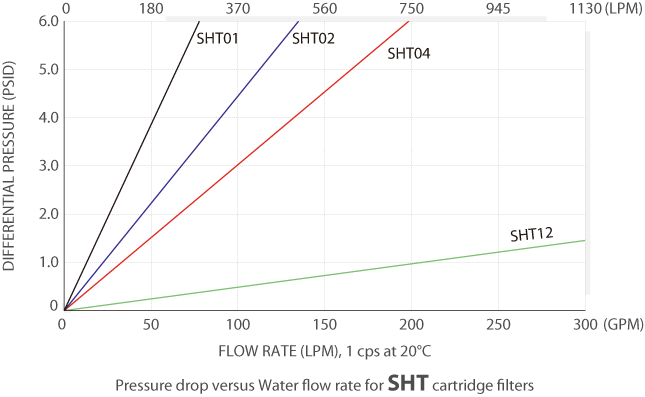

Water Flow rates per 10inch cartridge
