Product

CAPSULE FILTER

Products CAPSULE FILTER

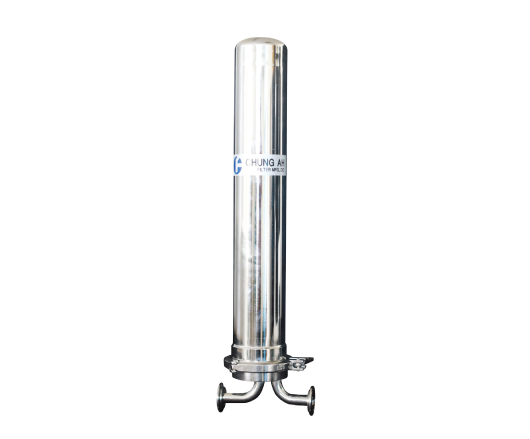

  • XWH
  • Description

    모든 XW 제품군에 공통적으로 적용 가능하며 125L , 250L , 500L 등 제품의 길이에 따라 Bowl 의 크기가 달라질 수 있습니다.

Applications

Solvents, Resins, Paints, Chemicals. Coatingstest

Nominal length of built-in cartridge(mm)

125, 250, 500

Materials

SUS304

Max operating pressure

100psid (6.9bar, 7kgf/c㎡)

Max temperature

60℃

In/Out Connecting diameter

1S Ferrule

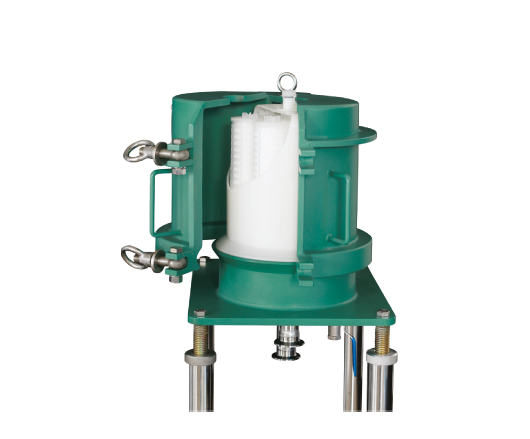

  • AWH
  • Description

    AW 제품군 1개가 들어 가며 좌우 개폐 방식으로 필터 교체가 용이하며, 지지대의 높이가 최대 100mm 늘어 날 수 있고 헤드 표면이 테프론 코팅이 되어 있습니다

Applications

Solvents, Resins, Paints, Chemicals. Coatings, Li-ion battery(LIB), Solvents, Resins, Paints, Chemical, Coating (Hazardous material)

Nominal length of built-in cartridge(mm)

250, 500

Materials

SUS304, Teflon coating

Max operating pressure

100psid (6.9bar, 7kgf/c㎡)

Max temperature

60℃

In/Out Connecting diameter

1.5S, 2S Ferrule

Ordering Information
